rincian produk

Created with Pixso. Rumah Created with Pixso. Produk Created with Pixso.
Mesin Perforasi Lembar
Created with Pixso.

Automatic CNC Panel Punching Machine with 200T Pressure 50 Times/Minute Speed and 1220mm Perforation Width for Gypsum MDF Fiber Cement Board

Nama

Automatic CNC Panel Punching Machine with 200T Pressure 50 Times/Minute Speed and 1220mm Perforation Width for Gypsum MDF Fiber Cement Board

Nama merek: LVJOE
Nomor Model: LV-CK01
Moq: 1 Set
harga: US $20000-80000
Kemampuan Penyediaan: 50 set per tahun
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
ISO CE SGS
Nama Produk:
Mesin Punching Panel CNC Otomatis Untuk Papan Semen Serat Gypsum MDF
Kata kunci:
Mesin Punching Panel Dekoratif
Tekanan:
80t, 160t, 200t
Penggunaan:
Papan Gypsum, MDF, HPL, Perforasi Papan Semen Serat
Pola:
Bundar, persegi, oval, heksagonal, tidak teratur
Lebar perforasi:
1220mm
Kecepatan:
50 kali/menit
Ukuran keseluruhan:
2300*1500*2300 (h*l*w)
Kemasan rincian:
Film PE dibungkus
Menyediakan kemampuan:
50 set per tahun
Deskripsi Produk

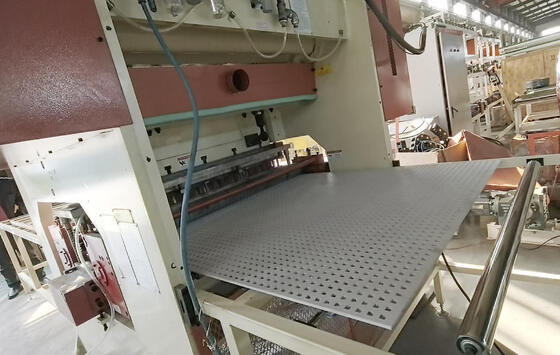

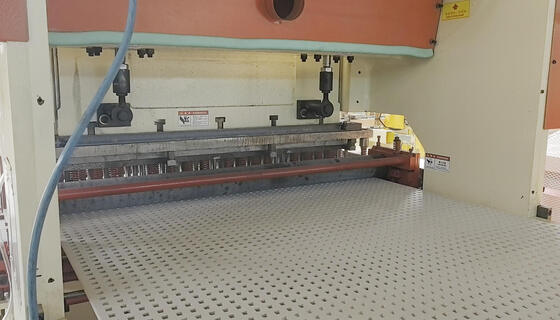

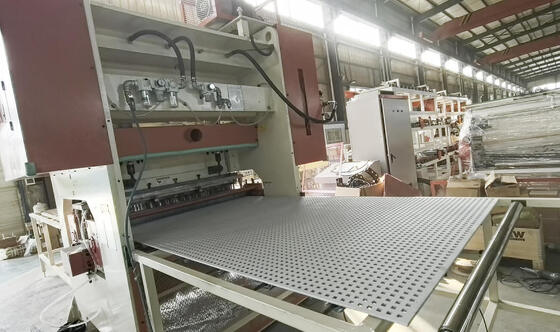

Automatic CNC Panel Punching Machine For Gypsum MDF Fiber Cement Board

High-performance automatic CNC panel punching machine designed for precision perforation of various building materials including gypsum board, MDF, and fiber cement board.

Key Specifications
Attribute Value
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Patterns Round, Square, Oval, Hexagonal, Irregular
Width of perforation 1220mm
Speed 50 times/minute
Overall Size 2300*1500*2300(H*L*W)
Weight 7-11T
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Structure and Configuration
  • Body of the main machine is welded with Q235 steel plate
  • H type gantry structure
  • Servo motor controlled feeding device
  • Front and rear roller conveyor (3000mm each)
  • Unilateral positioning for easy operation and high frequency
  • Central cabinet control with LCD touch screen digital input
  • 5.7-inch color LCD touch screen for feeding, punching, and operation control
Applications

This perforation machine is designed for creating precise holes in various materials including:

  • Gypsum ceiling board
  • MgO board
  • MDF
  • HDF
  • Fiber cement board
  • Metal sheet
Perforation Patterns

Custom perforating mold designs available from our extensive punching pattern database:

  • Round hole
  • Square hole
  • Oval hole
  • Round/oval cross
  • Hexagonal hole
  • Irregular hole

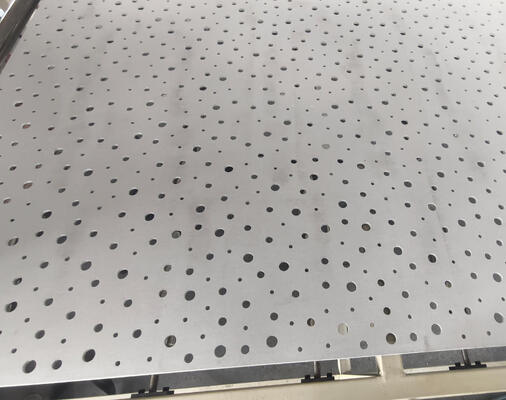

Finished Product Example
Automatic CNC Panel Punching Machine with 200T Pressure 50 Times/Minute Speed and 1220mm Perforation Width for Gypsum MDF Fiber Cement Board 0
