Fully Automatic High Capacity Adjustable Speed Rock Wool Sandwich Panel Production Line for Roof and Wall

Fully Automatic High Capacity Adjustable Speed Rock Wool Sandwich Panel Production Line for Roof and Wall

Nama merek:	Greenson
Moq:	1
harga:	$700000-$800000
Ketentuan Pembayaran:	L/C,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

HEBEI

Nama Produk:

Lini Produksi Panel Sandwich Z-lock Rock Wool Pu Pir Untuk Atap Dan Dinding

Kata kunci:

Lini Produksi Panel Sandwich Dinding Batu Wol Isolasi dengan PU Edge-Sealed

Warna:

Kebutuhan Pelanggan

Kemasan rincian:

Film plastik

Komponen Inti:

Motor, Bantalan

Bahan Lapisan Wajah:

Baja Galvanis Pra-cat (PPGI) / Baja Lapis Al-Zn

Ketebalan Substrat:

0,3 mm - 0,8 mm

Tempat asal:

Hebei, Tiongkok

Kapasitas Produksi:

(Dapat disesuaikan) 3-15m/mnt

Menggunakan:

Bahan Isolasi Bangunan

Deskripsi Produk

Z-lock Rock Wool PU/PIR Sandwich Panel Production Line For Roof And Wall

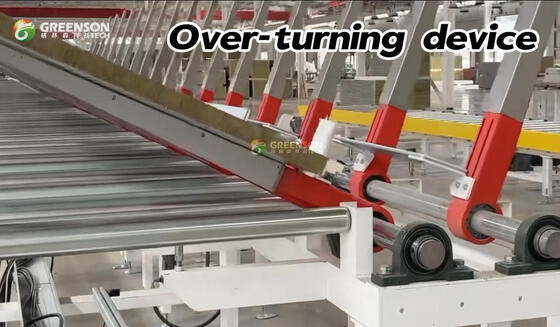

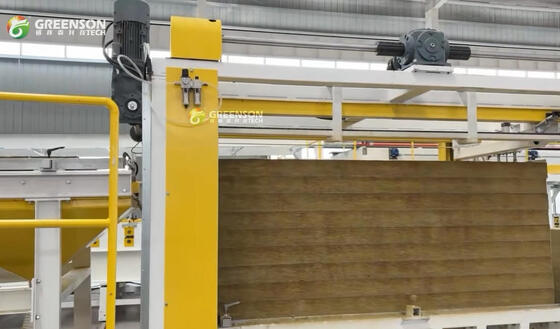

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

Key Features

Fully Automatic: Effortlessly produces high-quality sandwich panels
High Capacity: Handles large-scale production with efficiency
Variable Speed: Adjusts to match production needs for optimal output
Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
Guaranteed Quality: Equipped with video factory inspection and mechanical test reports

Production Process

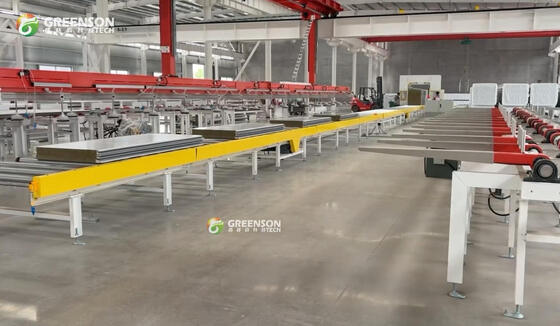

Complete automated workflow including feeding, profiling, gluing, heating, trimming, grooving, and cutting. Features precision low-speed metering pump with computer-controlled frequency regulation, accurate dosing, and stepless speed adjustment capabilities.

Product Capabilities

Produces various flat and corrugated sheet types

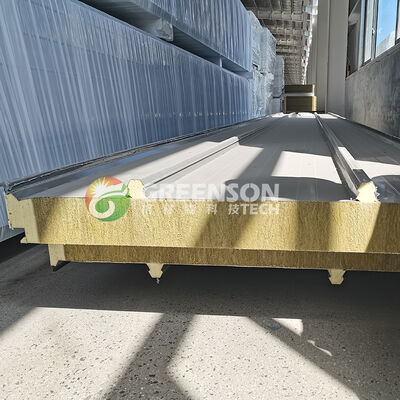

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 mm
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)

Tag:

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line with 3-15m/min Adjustable Speed 40-300mm Thickness and 950-1200mm Width
