High Precision Clean Room Sandwich Panel Machine for Laboratory Construction

High Precision Clean Room Sandwich Panel Machine for Laboratory Construction

harga:	$790000

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

HEBEI

Port of dispatch:

Tianjin

Key Selling Points:

Easy To Operate

Voltage:

380V 50Hz 3phases(changeable as needs)

Menyoroti:

clean room sandwich panel machine

high precision laboratory construction machine

mineral wool board production equipment

Deskripsi Produk

High Precision Clean Room Sandwich Panel Machine for Laboratory Construction

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Fully Automatic Continuous Sandwich Panel Production Line for PU/PIR, and Rock Wool Panels – High Efficiency & Energy Saving

* Precision: ±0.5mm Cutting Accuracy
* Versatility: Multi-core material compatibility (PU/PIR/Rockwool)
* Reliability: Siemens PLC & 24/7 After-sales Support

Production Process

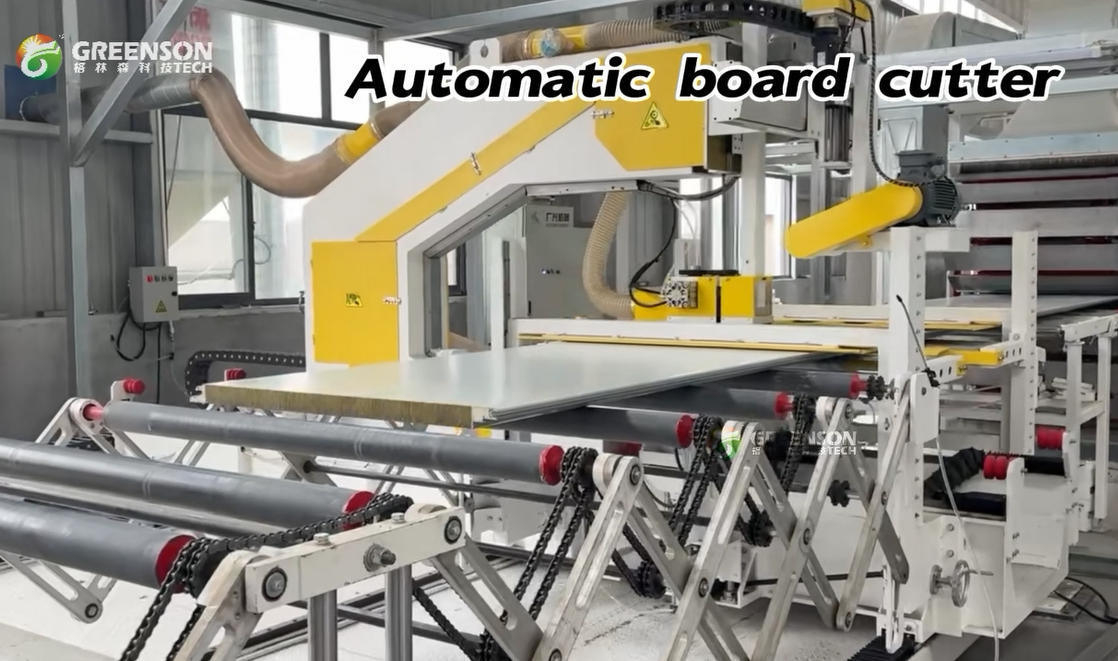

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
