Fully Automatic High Capacity Variable Speed Continuous PU PIR Sandwich Panel Production Line

Fully Automatic High Capacity Variable Speed Continuous PU PIR Sandwich Panel Production Line

Nama merek:	Greenson
Moq:	1
harga:	$700000-$800000
Ketentuan Pembayaran:	L/C,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

hebei

Nama Produk:

Lini Produksi Mesin Panel Sandwich PIR PU Poliuretan Berkelanjutan

Kata kunci:

Lini Produksi Panel Sandwich Pembentuk PU Terputus-putus & Berkelanjutan

Warna:

Kebutuhan Pelanggan

Kemasan rincian:

Film Plastik

Port of Dispatch:

TianJin

komponen inti:

Motor, Bantalan

Bahan Lapisan Wajah:

Baja Galvanis Pra-cat (PPGI) / Baja Lapis Al-Zn

Ketebalan Substrat:

0,3 mm - 0,8 mm

Tempat asal:

Hebei, Tiongkok

Deskripsi Produk

Continuous Polyurethane PIR PU Sandwich Panel Machine Production Line

Product Overview

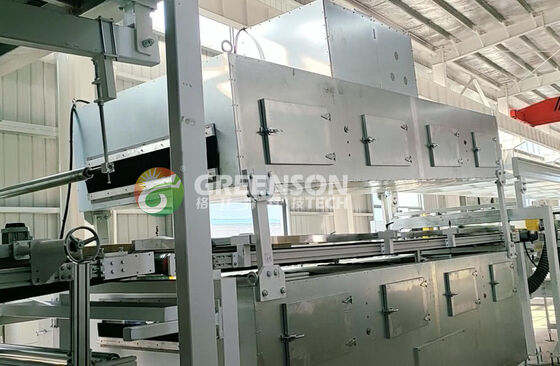

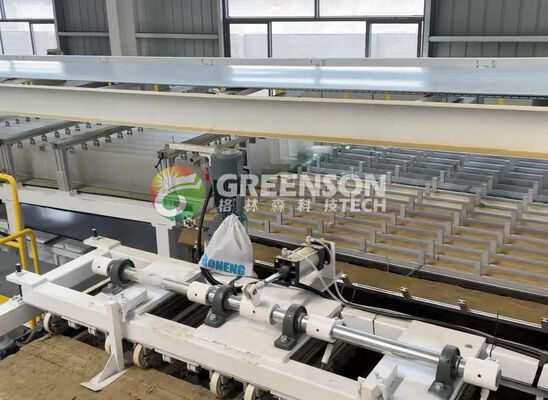

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

Fully Automatic: Effortlessly produces high-quality sandwich panels
High Capacity: Handles large-scale production with efficiency
Variable Speed: Adjusts to match production needs for optimal output
Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
Guaranteed Quality: Equipped with video factory inspection and mechanical test reports

Production Process

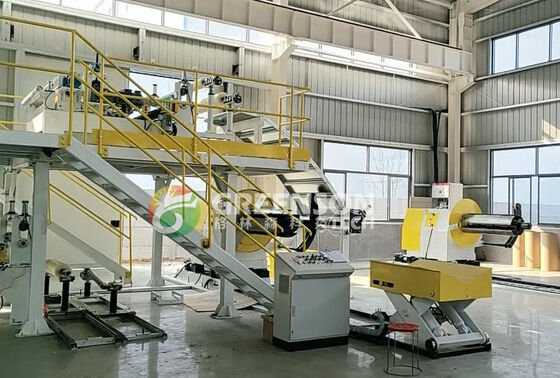

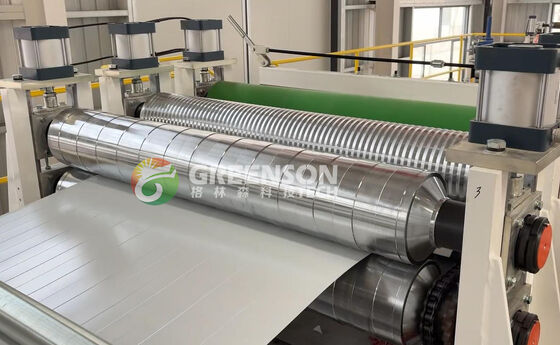

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 mm
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
