Fully Automatic PU Sandwich Panel Production Line Machine With 300kW Power and Adjustable Width

Fully Automatic PU Sandwich Panel Production Line Machine With 300kW Power and Adjustable Width

Nama merek:	Greenson
Moq:	1
harga:	$700000-$800000
Ketentuan Pembayaran:	L/C,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

hebei

Nama Produk:

Mesin Lini Produksi Panel Sandwich PU Sepenuhnya Otomatis Cina Dengan Daya 300kw

Kata kunci:

Mesin Pembuat Bahan Konstruksi Panel Sandwich PUR PIR SIP

Warna:

Kebutuhan Pelanggan

Kemasan rincian:

Film Plastik

Port of Dispatch:

TianJin

komponen inti:

PLC, Mesin, Bantalan, Motor, Pompa

Bahan Lapisan Wajah:

Baja Galvanis Pra-cat (PPGI) / Baja Lapis Al-Zn

Ketebalan Substrat:

0,3 mm - 0,8 mm

Tempat asal:

Hebei, Tiongkok

Jaminan:

1 Tahun

Deskripsi Produk

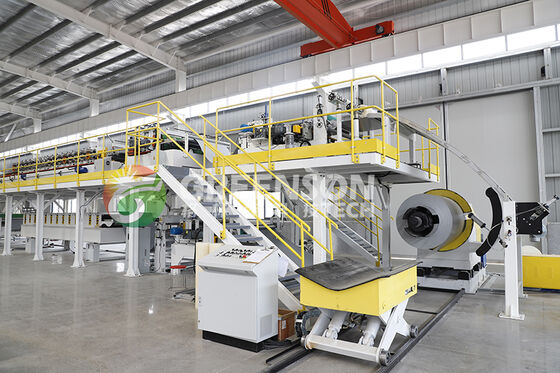

Fully Automatic PU Sandwich Panel Production Line Machine

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

Production Process

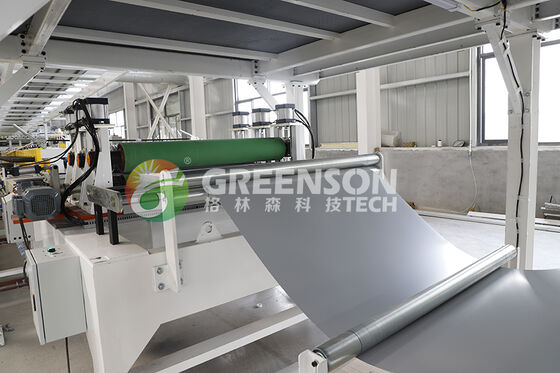

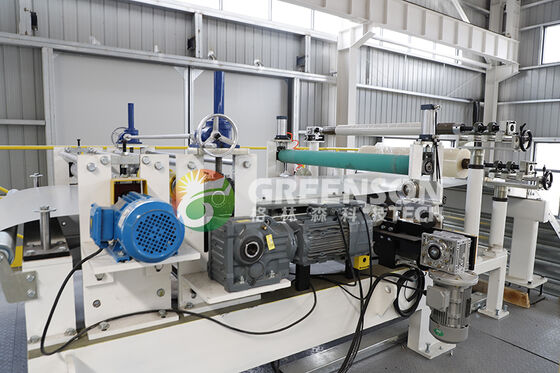

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

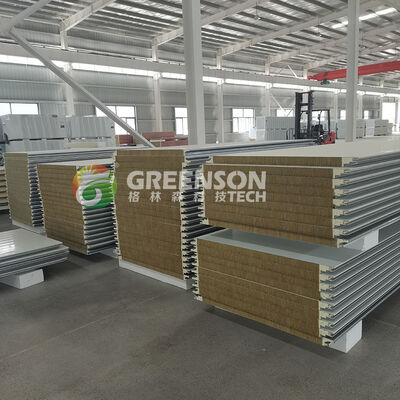

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 mm
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
