Customized Full-Automatic Rock Wool Sandwich Panel Production Line Easy To Operate

Customized Full-Automatic Rock Wool Sandwich Panel Production Line Easy To Operate

Nama merek:	Greenson
Moq:	1
harga:	$790000
Ketentuan Pembayaran:	L/C,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

hebei

Nama Produk:

Lini Produksi Panel Sandwich Rock Wool Otomatis yang Disesuaikan Dengan Kualitas Baik

Kata kunci:

Produsen Lini Produksi Panel Sandwich Wol Batu Hemat Energi

Warna:

Kebutuhan Pelanggan

Fitur:

Penuh-Otomatis

Kemasan rincian:

Film Plastik

Port of Dispatch:

TianJin

komponen inti:

PLC, Mesin, Bantalan, Motor, Pompa

nilai jual utama:

Mudah Dioperasikan

Aplikasi:

Atap dan Dinding

voltase:

380V 50Hz 3 fase (dapat diubah sesuai kebutuhan)

Deskripsi Produk

Customized Automatic Rock Wool Sandwich Panel Production Line With Good Quality

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

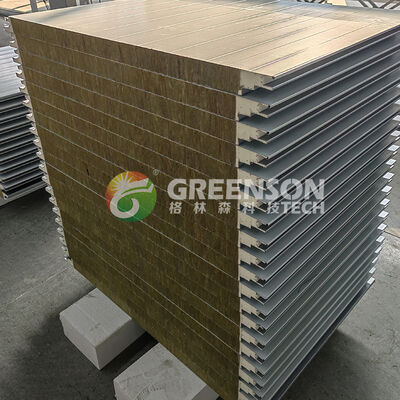

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
