High Efficiency PUR Hot Melt Glue Laminating Machine for Wall Panel with 5-17m/min Production Speed

High Efficiency PUR Hot Melt Glue Laminating Machine for Wall Panel with 5-17m/min Production Speed

Nama merek:	Greens
Moq:	1 set
Ketentuan Pembayaran:	L/C,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Nama Produk:

Mesin Laminating Lem Panas Meleleh PUR Efisiensi Tinggi Untuk Panel Dinding

Kata kunci:

Mesin Laminating PUR Panel Dinding

Film Penutup:

PVC, Roll Veneer, PP, Kertas, Aluminium Foil, Kulit, dll

Profil Dasar:

MDF, Papan partikel, papan gipsum, kayu lapis, WPC, PVC, Aluminium, Baja

Spesifikasi pelat pemrosesan:

1220mm*2440-3000mm

Ketebalan pelat:

3-40MM

Kecepatan Produksi:

5-17m/menit

Kemasan:

Bungkus film pelindung PE. Meja operasi dikemas dalam kotak kayu

Menyoroti:

High Efficiency PUR Laminating Machine

PUR Hot Melt Glue Laminating Machine

5-17m/min Production Speed Wall Panel Laminating Machine

Deskripsi Produk

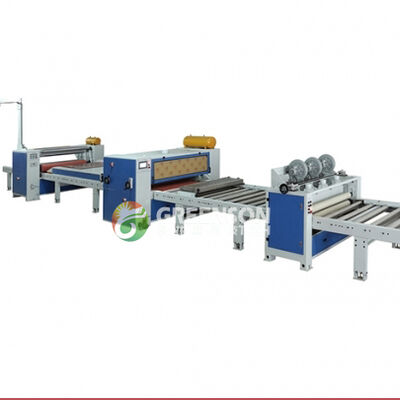

High Efficiency PUR Hot Melt Glue Laminating Machine For Wall Panel

This advanced production line is engineered for high-strength composite bonding of various material plates using PUR hot melt adhesive technology.

Product Overview

The laminated boards produced by this system feature exceptional adhesion strength, superior weather resistance, complete waterproofing, and environmental compliance. This machine is ideal for processing high-gloss sheet lamination, composite flooring, fireproof board lamination, and other industrial applications.

Compatible Materials

Base Board Materials

Particle board
MDF (Medium Density Fiberboard)
Plywood
Gypsum board
Polymer plastic board
Metal aluminum board
Foam board and other flat boards

Surface Materials

PET high-gloss film
PVC sheets
Wood grain paper
HPL fireproof board
CPL fireproof board
PU sheet
Acrylic materials
Aluminum film and other sheets or rolls

Adhesive System

PUR reactive hot melt adhesive

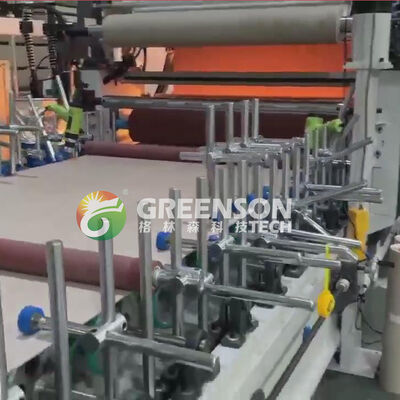

Application Process

This production line specializes in surface laminating of boards with various thicknesses. The system applies PUR hot-melt adhesive to roll film material and laminates it onto substrates including PVC foam board, gypsum board, steel board, wooden board, and other compatible materials.
