55kw PVC Film-Coated Gypsum Board Machine with 1300mm Max Laminating Width for 2-6million sqm/year Production

55kw PVC Film-Coated Gypsum Board Machine with 1300mm Max Laminating Width for 2-6million sqm/year Production

Nama merek:	Greens
Nomor Model:	LV--1300SFM(01/02/03)
Moq:	1 baris
harga:	US $20000-200000
Kemampuan Penyediaan:	10 baris per tahun

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Hebei, Cina (Daratan)

Sertifikasi:

ISO CE,

Nama Produk:

Peralatan Mesin Pembuat Papan Plafon Gypsum Semi Otomatis Dilapisi Film PVC Untuk Papan Plafon

Kata kunci:

Mesin pembuat papan gipsum laminasi PVC

Kekuatan (w):

55kW

Kapasitas Tahunan:

2-6 juta meter persegi/tahun

Warna:

Disesuaikan

Aplikasi:

Film, produksi mesin

Bahan mentah:

film pvc, papan gipsum, film hewan peliharaan

Nilai Otomatis:

otomatis

Penggunaan:

papan gipsum laminasi

Voltase:

380V

Kemasan rincian:

Paket Standar

Menyediakan kemampuan:

10 baris per tahun

Menyoroti:

55kw Gypsum Ceiling Board Making Machine

1300mm Max Laminating Width PVC Laminated Gypsum Board Machine

2-6 million sqm/year Gypsum Ceiling Tile Production Line

Deskripsi Produk

PVC Film-Coated Semi-Automatic Gypsum Ceiling Board Making Machinery

Advanced Production Equipment for Waterproof False Ceiling Tiles

This semi-automatic machinery system specializes in manufacturing PVC film-coated gypsum ceiling boards with advanced double-sided coating and laminating technology.

Key Specifications

Power Consumption	55kw
Annual Production Capacity	2-8 million square meters
Voltage Requirement	380V
Automation Grade	Automatic
Raw Materials	PVC film, gypsum board, PET film, aluminum foil

Production Features

Daily Output

7,000-12,000 m² per day (standard board dimensions)

Board Dimensions

595×595mm to 1200×600mm multiple standard sizes

Thickness Range

7.0mm to 9.0mm

Operation

Simple operation with high degree of automation

Technical Parameters

Model	LV-1300SFM01	LV-1300SFM02	LV-1300SFM03
Maximum Laminating Width	1300mm
Thickness Range	5-30mm
Maximum Laminating Speed	15m/min
Speed Regulation	Frequency conversion synchronous speed regulating
Installed Power	8kw	10kw	20kw

System Components

1. Gypsum Ceiling Board Lamination Machine

Specialized equipment for laminating film on gypsum board
1220mm laminating width capability
Standard gypsum board size: 1220×2440mm
Specialized adhesives for PVC film and aluminum foil
Maximum sheet speed: 2-15m/min
Thickness range: 2-50mm
Motor power: 4.5kw

2. Automatic Feeding Machine

Available in push-type (700mm max range) and suction-type models
Features photoelectric control and rubber roller transmission
Cost-effective solution with fully automatic operation

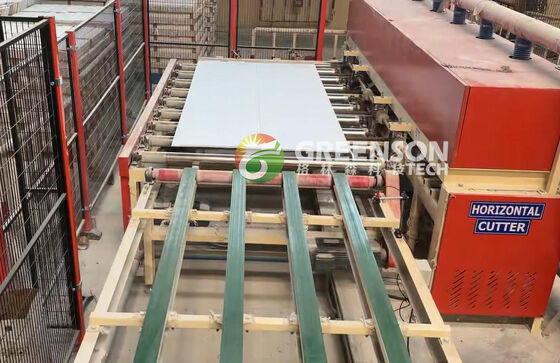

3. Automatic Cutting Machine

Precision cutting system for laminated gypsum boards
Features dual cutting system with pulsed sack-duster option

4. Automatic Sealing Machine

Right-angle type gypsum board sealing equipment
PLC photoelectric automatic control
High-speed operation with tight, firm edging
Quick setup and minimal equipment investment

5. Automatic Shrinking Machine

Heat shrinking system for final packaging
Infrared ray heating technology
Packaging speed: 20m/min
Weight: 500KG
Power: 18.75KW

6. Electrostatic Pulse Bag Style Dust Collector

Efficient dust collection system for clean operation
Large dust exhaust fan and pipe system
Complete system includes collector frame, motor, pipes, and pulse controller
