Fully Automatic Lamination Machine with 15m/min Laminating Speed and Automatic Board Feeding for Gypsum False Ceiling Cutting

Fully Automatic Lamination Machine with 15m/min Laminating Speed and Automatic Board Feeding for Gypsum False Ceiling Cutting

Nama merek:	Greenson
Nomor Model:	Mesin langit -langit plester veneer PVC otomatis
Moq:	1
harga:	$20000-200000
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	6 set/tahun

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Hebei

Sertifikasi:

CE ISO

Nama Produk:

China mengurangi sumber daya tenaga kerja dan material gipsum mesin pemotong langit -langit palsu

Kata kunci:

Mesin Pemotong Plafon Palsu Gipsum

Mode makan papan:

Otomatis (tipe push 、 tipe hisap) opsional

Kecepatan laminasi:

15m/mnt

Mode pelepasan papan:

Menumpuk transportasi terkonsentrasi

Mode susun:

10 lapisan (4 paket/lapisan)

bahan film:

Film PVC, foil aluminium, kertas dekoratif, dll.

Bahan lembar papan:

Papan gypsum, papan busa PVC, papan sectional, dll

Ukuran Papan:

595*595*7-30mm 603*603*7-30mm 600*600*7-30mm 1200*600*7-30mm 1195*595*7-30mm

Voltase:

380V

Menyediakan kemampuan:

6 set/tahun

Menyoroti:

15m/min Laminating Speed Gypsum False Ceiling Cutting Machine

Automatic Board Feeding Fully Automatic Lamination Machine

10 Layers Stacking Mode Gypsum Ceiling Tile Production Line

Deskripsi Produk

Automatic PVC Veneer Plaster Ceiling Machine

This advanced PVC coated gypsum board ceiling production line significantly reduces labor and material resources while delivering high-quality false ceiling panels for interior decoration applications.

Technical Specifications

Product Name	Automatic PVC Veneer Plaster Ceiling Machine PVC Coated Gypsum Board Ceiling Production Line
Board Feeding Mode	Automatic (push type, suction type) optional
Laminating Speed	15m/min
Board Releasing Mode	Stacking concentrated transportation

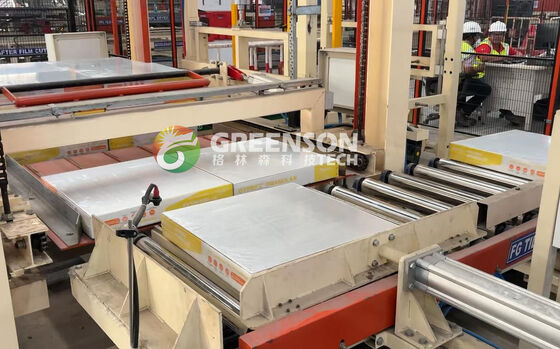

Stacking Mode	10 layers (4 packages/layer)
Film Material	PVC film, aluminum foils, decorative paper, etc.
Board Sheet Material	Gypsum board, PVC foam board, sectional board, etc.

Production Line Features

Multiple automatic levels available to suit different production needs
Siemens PLC control system for reliable operation
High annual production capacity of 2-6 million square meters
Compatible with gypsum board, PVC film, aluminum foil, and glue
Maximum effective laminating width: 1300mm
Handles sheet thickness from 5mm to 30mm
Frequency conversion synchronous speed regulation
Certified with ISO9001 and CE standards

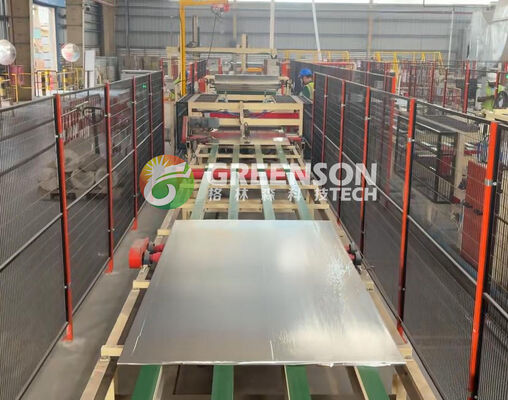

Production Process

This plasterboard laminating machine processes paper-faced gypsum boards (6mm to 8mm thickness) by applying special glue on both sides, then laminating with PVC film and PET foil. The finished boards are cut to standard sizes (60×60mm) for use as false ceilings in interior decoration applications.

Automation Features

Simultaneous PVC film and PET foil lamination

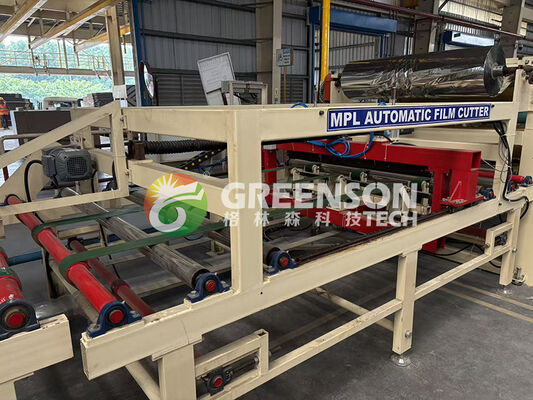

Automatic film and foil cutting system
Automatic side taping for finished edges
Integrated shrinking and packing system
PLC automatic control for precision operation

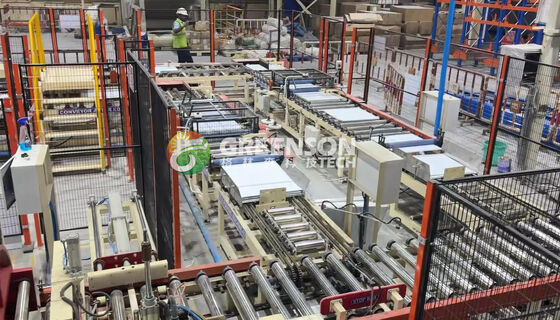

Automatic PVC Gypsum Ceiling Tiles Cutting Machine

This specialized equipment produces various plates through PLC-controlled automation. The system includes automatic push plate, routing, cutting, longitudinal cutting, and automatic palletizing functions, utilizing chain and sprocket transmission.

With advanced process technology, compact and reasonable structure, reliable operation, and elegant design, the finished plates are ideal for indoor decoration. The products offer moisture-proof, lightweight, soundproof properties with diverse specifications and beautiful decorative effects. Quick and easy construction makes this equipment essential for gypsum board factories, cabinet door board factories, and decorative material companies.

Applicable to various materials including MDF, fire board, and gypsum board partitions, this system has gained widespread market and customer approval.
