Customizable Rock Wool Production Line with Natural Gas Cupola for Wall Board and Sandwich Wall Panel Applications

Customizable Rock Wool Production Line with Natural Gas Cupola for Wall Board and Sandwich Wall Panel Applications

Nama merek:	Greens
Nomor Model:	jalur produksi wol batu
Moq:	1
harga:	US $2000000-4000000
Ketentuan Pembayaran:	TT, LC

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Nama Produk:

Jalur Manufaktur Wol Batu Canggih yang Dapat Disesuaikan Untuk Lini Produksi Wol Batu Mineral Isolas

Kata kunci:

Lini produksi panel wol batu

Waktu Produksi Tahunan:

300 hari

Tungku Peleburan:

Kubah gas alam

Jaminan:

1 tahun

Ketebalan Produk:

30mm ~ 200mm

Lebar Produk:

1,2 Meter

Penggunaan:

Papan dinding, panel dinding sandwich

Kemasan rincian:

Kemasan peti kayu

Menyoroti:

Natural Gas Cupola Rock Wool Production Line

Wall Board Application Mineral Wool Board Production Line

Sandwich Wall Panel Application Stone Wool Production Line

Deskripsi Produk

Advanced Customizable Rock Wool Manufacturing Line

Insulation Mineral Stone Wool Production Line

The raw materials used in rock wool production include basalt, dolomite, and binders. The production process begins with loading materials into the hopper via elevator, where they are heated and melted in the furnace. The molten lava flows into the melt flow tank, then cools and spins into fibers through centrifugation.

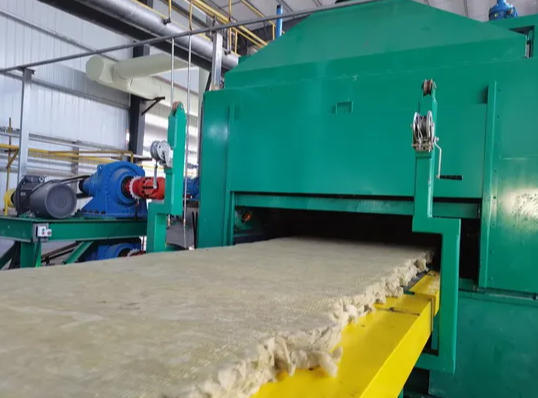

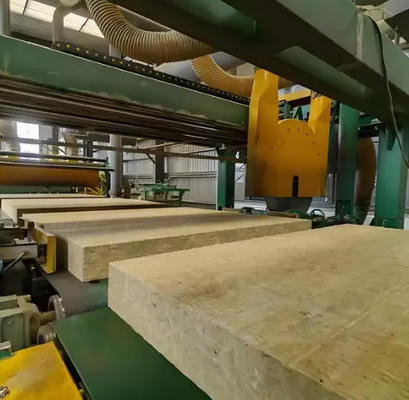

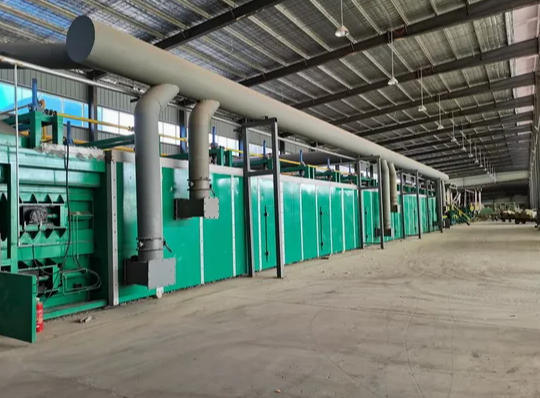

During fiber formation, binders are sprayed into the fiber molding chamber while negative pressure wind heats and draws the fibers downward onto the mesh belt to form the original felt. The pendulum cloth machine then processes the felt before it enters the curing furnace, where hot air solidifies the material. Finally, the product undergoes precision cutting (both longitudinal and transverse) before packaging and storage.

Product Name	Rock Wool Production Line
Automatic Grade	Automatic
Voltage	380V
Features	Automatic
Panel Thickness	30-150mm
Felt Size	1000mm (adjustable)
Panel Density	30-200 Kg/m³
Applicable Industries	Manufacturing Plant, Retail, Construction Works

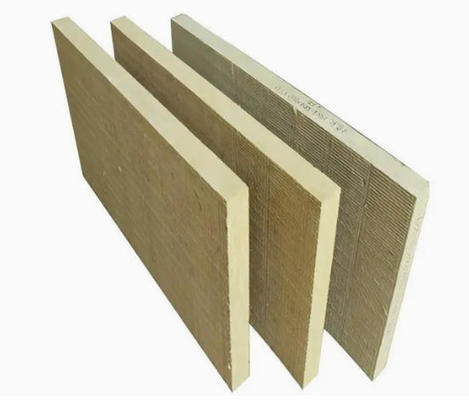

Finished Products	Rock Wool Mattress and Board
Usage	Building Material Production

Frequently Asked Questions

Q: Where is the factory located?

A: Our facility is located in Shijiazhuang, Hebei Province, near Beijing Airport. We can arrange pickup from Beijing Airport for visiting clients.

Q: Do you accept on-site inspection to check your machine and your factory?

A: Yes, we conduct trial testing for all equipment before shipment and welcome clients to perform on-site inspections during this process.

Q: What payment terms do you prefer?

A: We accept T/T, L/C, Western Union, and Cash payments.

Q: How long is the validity of quotation?

A: Our quotations remain valid for one month, with potential adjustments based on raw material price fluctuations and market changes.

Q: Do you provide OEM/ODM Service?

A: Yes, we offer customized solutions to meet diverse client requirements and budgets.

Q: How can we ensure quality?

A: We perform comprehensive final inspections before shipment to guarantee product quality.

Q: Do you offer a guarantee?

A: Yes, we provide a one-year product guarantee along with after-sales service and technical support.

Q: What is your MOQ?

A: Minimum order quantity is 1 set.
