Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance

Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance

Nama merek:	Greens
Nomor Model:	jalur produksi wol batu
Moq:	1
harga:	US $2000000-4000000
Ketentuan Pembayaran:	TT, LC

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Nama Produk:

Mesin Untuk Membuat Bahan Bangunan Lainnya Pabrik Lini Produksi Wol Batu Mineral

Kata kunci:

Jalur Produksi Wol Batu Mineral

Proses utama:

Sistem Pasokan Bahan Baku, Sistem Lelur (Cupola Furnace), Sistem Pembentukan Serat, Sistem Seleksi W

Bahan Baku:

Basal 、 dolomite 、 slag

Sistem Pengendalian:

Catu Daya:

380V/50Hz

Instalasi:

Insinyur tersedia untuk melayani mesin di luar negeri

Jaminan:

1 tahun

Kemasan rincian:

Kemasan peti kayu

Menyoroti:

380V/50Hz Mineral Rock Wool Production Line

1 Year Warranty Rock Wool Board Production Line

Class A1 Fire Resistance Mineral Wool Board Production Line

Deskripsi Produk

Mineral Rock Wool Production Line Factory

Production Process Overview

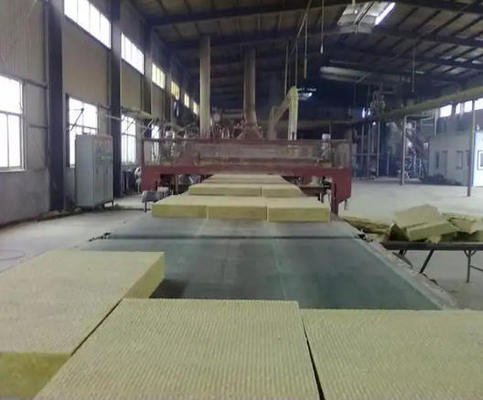

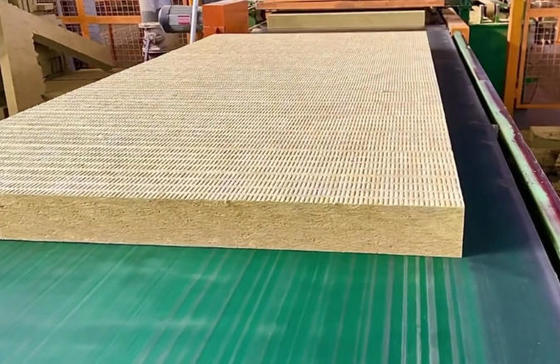

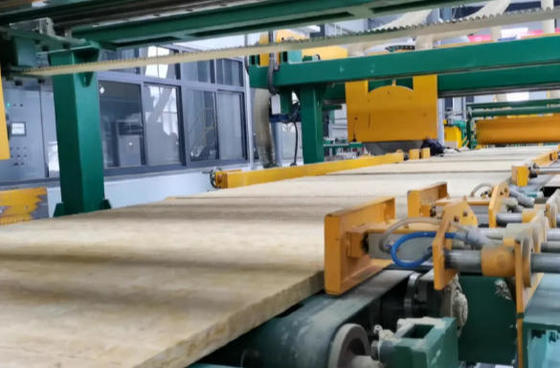

The rock wool production process begins with raw materials including basalt, dolomite, and binders. These materials are loaded into the hopper via elevator and melted in a furnace. The molten lava flows into a tank, where it's cooled and spun into fibers by a centrifuge. During fiber formation, binders are sprayed into the fiber molding chamber while negative pressure wind helps shape the fibers. The resulting fiber mat is transported via mesh belt to a pendulum cloth machine, then through a curing furnace where hot air solidifies the material. The final product undergoes precision cutting (both longitudinal and transverse) before packaging and storage.

Primary Applications

Rock wool is extensively used for fireproofing and sound absorption in partition/curtain walls, thermal insulation for roofs and retaining structures, geothermal systems, and industrial applications including kilns, ovens, and large tanks/vessels requiring both insulation and fire resistance.

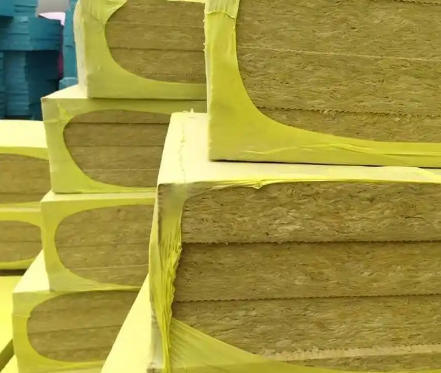

Product Specifications

Width: 1,000mm or 1,200mm
Length: 1,000mm (adjustable)
Thickness: 30-150mm
Density: 40-200kg/m³

Technical Parameters

Parameter	Value
Fiber diameter	5-8um
Shot content	6-8%
Max. application temperature	600°C
