Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Nama merek:	LVJOE
Nomor Model:	1300FM
Moq:	1 baris
harga:	US $20000-200000
Ketentuan Pembayaran:	L/c, t/t
Kemampuan Penyediaan:	10 baris per tahun

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Hebei, Cina (Daratan)

Sertifikasi:

ISO CE

Nama Produk:

Mesin Laminating Sisi Ganda Canggih Otomatis Penuh Mesin Pembuat Ubin Langit-langit Papan Gipsum

Kata kunci:

mesin pembuatan ubin plafon gipsum

Jenis papan jadi:

Papan gypsum laminasi PVC

Laminasi yang efektif:

1300mm

Kontrol Listrik:

Sistem PLC

Kapasitas produksi:

2-6 juta meter persegi/tahun

Layanan purna jual:

Insinyur tersedia untuk layanan

Tipe lem:

Lem air untuk film PVC

Kemasan rincian:

Pengepakan standar

Menyediakan kemampuan:

10 baris per tahun

Menyoroti:

1300mm Effective Laminating Gypsum Ceiling Tile Production Line

2-6 million Sq.m/year Production Capacity Gypsum Board Laminating Machine

Adjustable Speed 2-15m/min PVC Laminated Gypsum Board Machine

Deskripsi Produk

Full Automatic Advanced Double Side Laminating Machine for Gypsum Board Ceiling Tiles

Product Overview

This advanced double side laminating machine is designed for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels. The fully automatic system handles fiber glass, paper, PVC film, and aluminum foil lamination with precision and efficiency.

Key Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating width	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Main Components

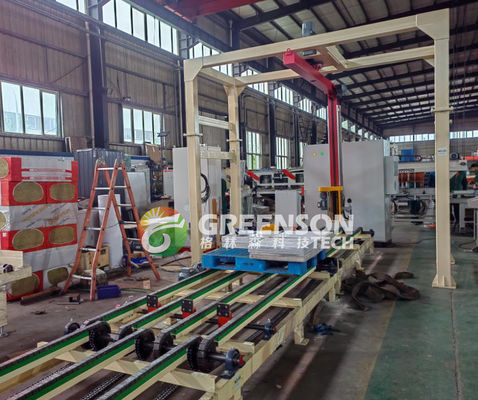

Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg

Stroke: 1500mm

Height range: 620mm - 2000mm

Platform size: 1200×2400mm

Automatic Cutting Machine

Features two cutting systems (vertical/longitudinal and horizontal) with dust collection, converting 1.2×2.4m boards into 603×603mm or 595×595mm tiles.

Cutting speed: 15m/min

Cutting knives: Vertical: 3 blades, Horizontal: 5 blades

Overall power: 17.15KW

Technical Specifications

Sheet thickness range: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible film materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Lamination options: Double side (front and back simultaneously) or single side
Overall dimensions: 56000mm (L) × 9200mm (W)
