Manufacturing Machines For Small Business Ideas Gypsum Mini Ceiling Tile Making Machine

Nama

Manufacturing Machines For Small Business Ideas Gypsum Mini Ceiling Tile Making Machine

Nama merek:	LVJOE
Nomor Model:	1300FM
Moq:	1 line
harga:	US $20000-200000
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	10 lines per Year

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

Hebei，China(Mainland)

Sertifikasi:

ISO

Product Name:

Manufacturing Machines For Small Business Ideas Gypsum Mini Ceiling Tile Making Machine

Keyword:

other machinery & industrial equipment construction gypsum ceiling tile packing machine

Finished board type:

PVC laminated gypsum board

Effective laminating:

1300mm

electric control:

PLC system

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers available to service

Glue type:

Water Glue for PVC film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Menyoroti:

small business gypsum tile machine

,

mini ceiling tile making machine

,

gypsum ceiling tile production line

Deskripsi Produk

Gypsum Mini Ceiling Tile Making Machine

Product Overview

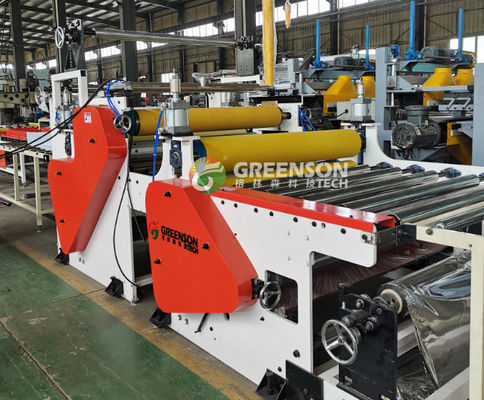

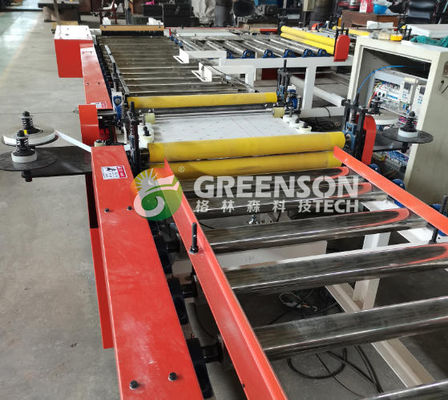

This gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board to create finished products for ceiling tiles and partition wall panels.

Key Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Glue type	Water Glue for PVC film

Machine Components

Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum board from stack lift platform to conveyor roll
Max. Load-bearing: 3000kg
Stroke: 1500mm
Min. Height: 620mm
Max. Height: 2000mm
Platform size: 1200*2400mm

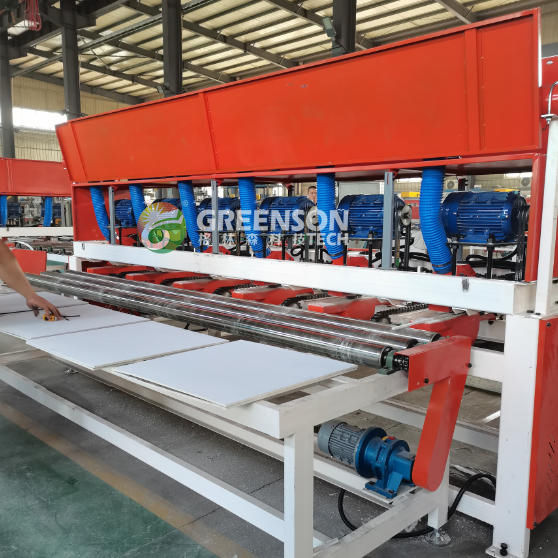

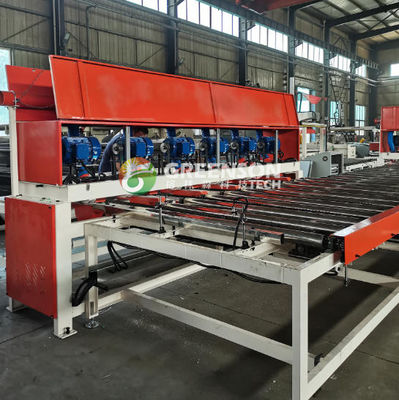

Automatic Cutting Machine

Dual cutting system: vertical/longitudinal and horizontal cutting
Equipped with dust collector system
Converts 1.2*2.4m boards to 603*603mm/595*595mm tiles
Cutting speed: 15m/min
Cutting knives: 3 vertical/longitudinal blades, 5 horizontal blades
Overall power: 17.15KW

Technical Specifications

Sheet thickness: 5-30mm

Speed adjustment: Frequency conversion synchronous speed regulating

Annual capacity: 2-4 million Sq.m

Film material: PVC film, aluminum foils, decorative material

Board material: PVC baseboard, gypsum board, wood board

Stacking mode: 10 layers (4 packages/layer)

Cutting mode: 3 vertical blades, 5 horizontal blades

Overall dimension: 56000mm (L) × 9200mm (W)

Lamination mode: Double side or single side options
